[Tutorial] Pulpissimo install & pulp-runtime

Started by this github page, but something has different on 2024, so i write a tutorial for it.

https://github.com/pulp-platform/pulpissimo

GitHub - pulp-platform/pulpissimo: This is the top-level project for the PULPissimo Platform. It instantiates a PULPissimo open-

[Environment]

-Ubuntu 20.04

-python3.8.10



[Install risc-v toolchain]

There are two toolchains

one for pulp-riscv-gnu-toolchain and riscv-gnu toolchain

https://github.com/pulp-platform/pulp-riscv-gnu-toolchain

GitHub - pulp-platform/pulp-riscv-gnu-toolchain



https://github.com/pulp-platform/riscv-gnu-toolchain

GitHub - pulp-platform/riscv-gnu-toolchain: GNU toolchain for PULP and RISC-V

but, riscv-gnu-toolchain is more latest, and when i click the link at pulpissimo github, link goes to riscv-gnu-toolchain

so, i install the riscv-gnu-toolchain



This repository uses submodules. You need the --recursive option to fetch the submodules automatically

git clone --recursive https://github.com/pulp-platform/riscv-gnu-toolchain.git

install dependency

sudo apt-get install autoconf automake autotools-dev curl python3 libmpc-dev libmpfr-dev libgmp-dev gawk build-essential bison flex texinfo gperf libtool patchutils bc zlib1g-dev libexpat-dev

then, go to pulpissimo directory

cd pulpissimo
./configure --prefix=/opt/riscv --with-arch=rv32imfcxpulpv3 --with-abi=ilp32 --enable-multilib
make

when you command "make" almost 1hour to install it. if you want to shorten the installation, use -j options to use more core. Below is the example.(you can use -j and any integer, 16 is just example)

make -j16

[Note] : you can change the options for configure, "--with-arch=" means ISA, so you can change like rv32imc, rv32im etc..

[Pulpissimo install]

Download git

git clone https://github.com/pulp-platform/pulpissimo.git

env settings

export PULP_RISCV_GCC_TOOLCHAIN=<YOUR_PULP_TOOLCHAIN_PATH>
export PATH=$PULP_RISCV_GCC_TOOLCHAIN/bin:$PATH

if you just using original ubuntu20.04, Toolcahin will be install in "/opt/riscv"

so, in my example, i set env like below.

export PULP_RISCV_GCC_TOOLCHAIN=/opt/riscv
export PATH=$PULP_RISCV_GCC_TOOLCHAIN/bin:$PATH

then make checkout

it will update latest IPs

make checkout

after checkout, build the pulpissimo platform

make build

if you build corretly it will shows with message contain "vopt_tb"(soon, i will add the photo of it)

[Pulp-runtime]

Plulp has two software simulation tools, one for pulp-runtime, the other is pulp-sdk

however, pulp-sdk does not support pulpissimo anymore. if you want to use sdk, you need to user oldest version

so, in this time, we use pulp-runtime instead. it is already install in pulpissimo git. so you don't need to download new things.

go to pulpissimo diretory and command

cd sw/pulp-runtime

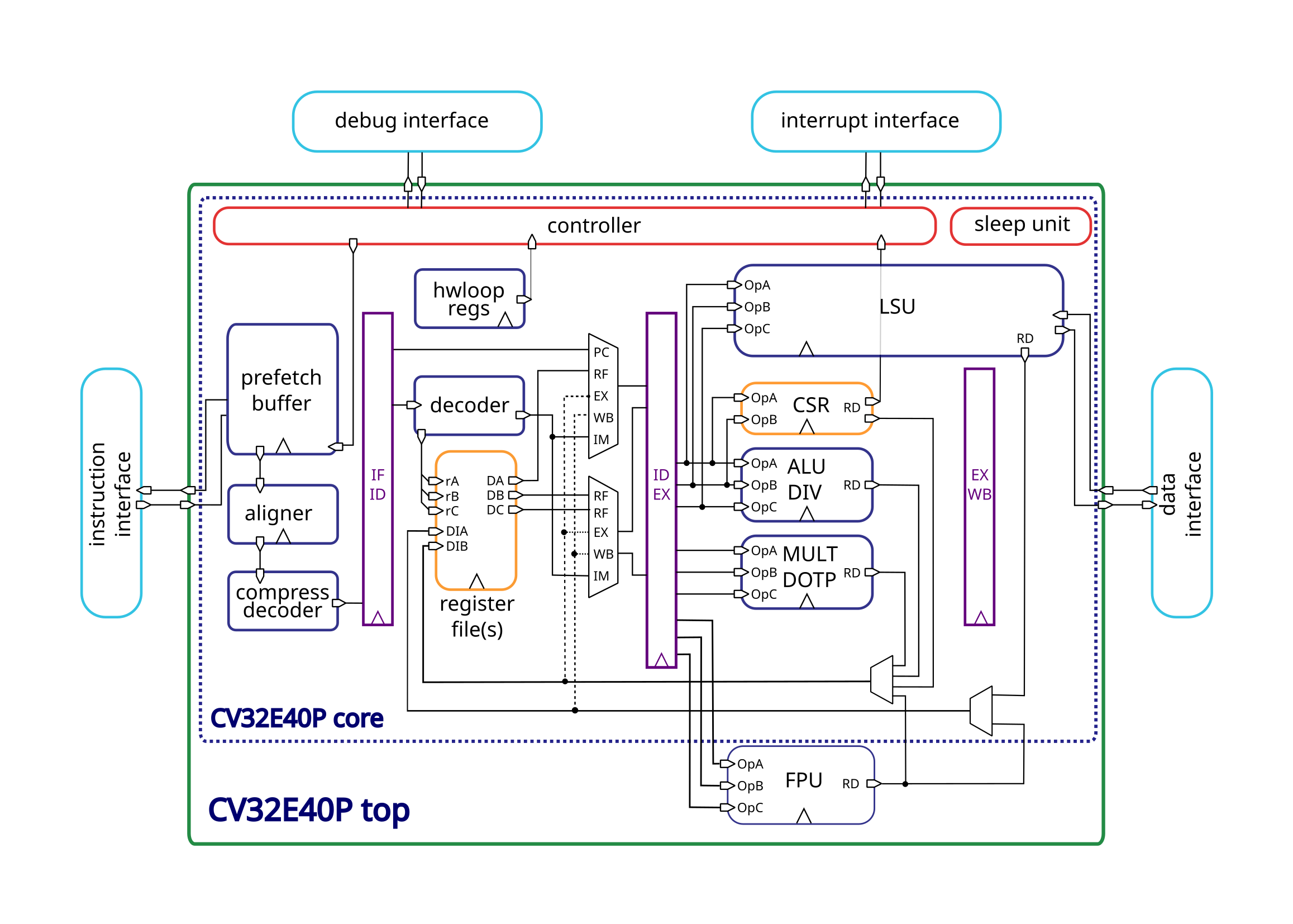

source configs/pulpissimo_cv32.sh

this settings make pulp-runtime build with pulpissimo, there are lots of options in config folder. you can switch it freely

then make build again at pulpissimo directory

make build

then at the sw/pulp-runtime directory

git clone https://github.com/pulp-platform/pulp-runtime-examples.git

in this git, there are several examples for it.

when you enter the pulp-runtime-examples. cd hello to try simulation

cd hello
make clean
make all
make run

if you type above command, you can simulation with pulpissimo platform

[Note] : you need to install questasim to simulation.

https://www.intel.com/content/www/us/en/software-kit/819742/questa-intel-fpgas-pro-edition-software-version-24-1.html

Questa*-Intel® FPGAs Pro Edition Software Version 24.1

you can download questasim starter/pro version in above link. you need to license of it to simulation

if you compeletly install questa, command "vsim", then questasim will be opened in gui

any other questions, please take comment below.
